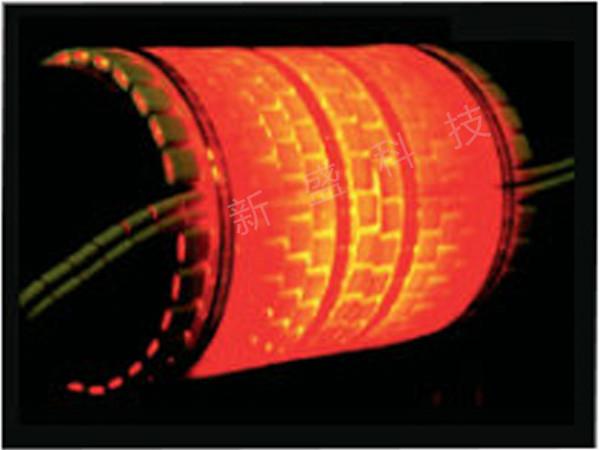

LCD-G crawler pipe heater

The LCD type crawler type ceramic heater uses a lead oxide ceramic element with high strength and good thermal radiation performance as an insulating material, and uses a high-quality nichrome wire as a heating element, and a well-arranged heater can be rectangular or triangular. Nickel-chromium wire cables and wires are welded by a new process. The soldered joints are all embedded in the ceramic components. The insulation is reliable. Ceramic heaters and control equipments become complete heat treatment systems. Their connection uses special connectors and can be based on The length of the control device is configured with long wires. The track size ceramic heater can be flexibly changed in length dimension. The corresponding specifications should be selected according to the geometry, wall thickness and heat treatment process of the workpiece. The following table lists only some of the specifications.


Model Heating Size (mm) Working Pressure (V) Rated Voltage (KW) Applicable Pipe Diameter
Bendable edge × straight edge
LCD26-220 660×330 220 10 Φ219
LCD33-220 860×260 220 10 Φ273
LCD39-220 1020×220 220 10 Φ325
LCD44-220 1160×200 220 10 Φ377
LCD52-220 1360×160 220 10
LCD70-220 1860×120 220 10
LCD19-220 500×450 220 10 Φ159
LCD16-220 420×530 220 10
LCD19-110 500×220 110 5 Φ159
LCD16-110 420×260 110 5
LCD23-110 600×180 110 5
LCD10-55 260×200 55 2.5
LCD16-55 410×120 55 2.5
