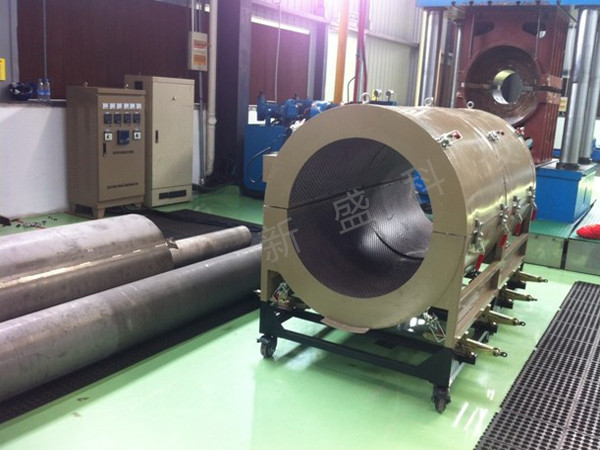

LCD-Q extra large type heating furnace for open type

The track type heater is used as a heat source, and the heat insulation material and the outer shell are matched to form a circle type to open type heater, which is convenient for loading and unloading, and is suitable for the local heating of small and medium sized pipes, and the maximum working temperature is 750 degrees centigrade.

Model suitable for pipe diameter (mm) working voltage (V) rated power (KW)

With the diameter of 33361.7 LCD-Q-33

With the diameter of 48552.5 LCD-Q-48

With the diameter of 761105 LCD-Q-76

With the diameter of 891105 LCD-Q-89

With the diameter of 1081105 LCD-Q-108

With the diameter of 1331105 LCD-Q-133

With the diameter of 1591105 LCD-Q-159

With the diameter of 21922010 LCD-Q-219

With the diameter of 27322010 LCD-Q-273

With the diameter of 32522020 LCD-Q-325

With the diameter of 37722020 LCD-Q-377

With the diameter of 42622020 LCD-Q-426

The complete metal component heat treatment equipment is composed of three parts, namely, ceramic electric heater, temperature control box and auxiliary material.

1 ceramic electric heater: the heating element, is the heat source of the workpiece heating. We provide you with a variety of models and specifications, they have different characteristics, the performance is not the same. Such as LCD type crawler heater, SCD rope shaped heater, NJ heat frame type heater and so on, which normally takes users according to the heating of the workpiece shape, thickness and the required temperature values to choose.

2 temperature control box: it is matched with the ceramic electric heater to provide power for the ceramic electric heater, and control the working state to achieve the purpose of controlling the temperature. Temperature control box with a temperature controller for controlling, measuring the temperature of the workpiece, the configuration of the temperature recorder for real-time recording of the temperature curve of the workpiece so that the user can file for the record. At present our company for the user to provide various types and specifications of the temperature control box, such as Zwk, WCK, rwk with type series intelligent temperature program control box, DWK, TCS series computer temperature control box, LWK series temperature control box and so on, selection of user needs according to the range of heating, heating technology requirements and site requirements and to select the ideal and practical temperature control box.

. auxiliary materials: mainly kJ type fast connecting with long wires (between the temperature control box and the heater distance connecting line to 36V, 55v, 110V, heater series, and is equipped with quick plug), thermocouple temperature sensor for measurement is the temperature of the heating workpiece), the compensation wire (between the thermocouple and the temperature control box connection line distance, aluminum silicate heat insulation cotton (to prevent heat dissipation).

Use matters needing attention:

1, the workpiece must be heated to a reliable grounding.

2, when the heater is not allowed to overlap.

3, the thermocouple should be reliable and the workpiece attached.

Preparation note:

1. The width of the heater should be 8-12 times of the wall thickness of the heated object.

2, according to the needs of the user can complete sets of supply wire cable, thermocouple, thermal insulation covering material and special temperature control cabinet and capacitance welding even instrument.

3, the power error is 3%, the shape tolerance is + 2%.

4, special specifications can be customized.
