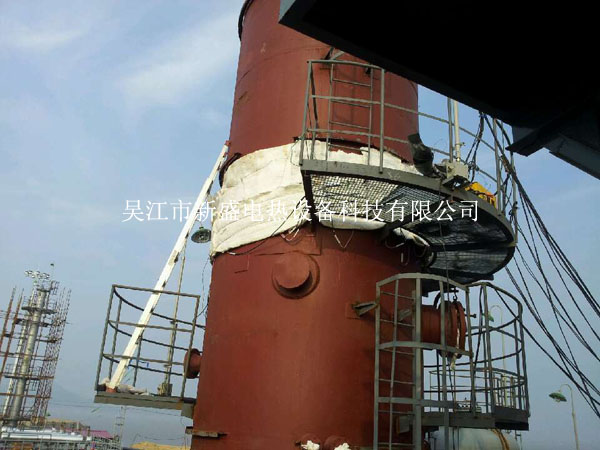

Heat treatment of large tower

LCD type crawler ceramic heater is made of high strength, good heat radiation performance of lead oxide ceramic elements are used for insulating materials, with high-quality nickel chrome wire cable as the heating element, penetrated and connected the heater can be rectangular or triangular. Nichrome wire cable and wire is welded by new process, welding joint all buried in the inside of a ceramic element reliable insulation, ceramic heater and control equipment become complete thermal processing system and their connection using a dedicated connector, and according to the workpiece and control equipment disposition distance take a long wire. The length size can be flexible to change the production of crawler type ceramic heater, should be considered the geometry of the workpiece, wall thickness and heat treatment process to choose the appropriate specifications, the next table is only part of the specifications.


Type heating size (mm) working pressure (V) rated voltage (KW) applied to pipe diameter


Can be bent straight edge x


LCD26-220 660 x 33022010 Phi 219


LCD33-220 860 x 26022010 Phi 273


LCD39-220 1020 x 22022010 Phi 325


LCD44-220 1160 x 20022010 Phi 377


LCD52-220 1360 x 16022010


LCD70-220 1860 x 12022010


LCD19-220 500 x 45022010 Phi 159


LCD16-220 420 x 53022010


LCD19-110 500 x 2201105 Phi 159


LCD16-110 420 x 2601105


LCD23-110 600 x 1801105


LCD10-55 260 x 200552.5


LCD16-55 410 x 120552.5


There are three parts in the heat treatment equipment of the metal component, that is, the ceramic electric heater, the temperature control box and the auxiliary material.


1 ceramic electric heater: that is, heating element, is the heat source of the workpiece. My company offers you a variety of models and specifications, they have the characteristics, performance is not the same. Such as LCD type crawler heater, SCD rope shaped heater, NJ heat frame type heater and so on, which normally takes users according to the heating of the workpiece shape, thickness and the required temperature values to choose.


2 temperature control box: it is with the ceramic electric heater, for the ceramic electric heater to provide power, and control its working state so as to achieve the purpose of temperature control. Temperature control box is equipped with temperature controller for controlling, measuring the temperature of the workpiece, and the configuration of the temperature recorder used to record the temperature curve of the workpiece in real time so that the user can record the record. At present our company for the user to provide various types and specifications of the temperature control box, such as Zwk, WCK, rwk with type series intelligent temperature program control box, DWK, TCS series computer temperature control box, LWK series temperature control box and so on, selection of user needs according to the range of heating, heating technology requirements and site requirements and to select the ideal and practical temperature control box.


. auxiliary materials: mainly kJ type fast connecting with long wires (between the temperature control box and the heater distance connecting line to 36V, 55v, 110V, heater series, and is equipped with quick plug), thermocouple temperature sensor for measurement is the temperature of the heating workpiece), the compensation wire (between the thermocouple and the temperature control box connection line distance, aluminum silicate heat insulation cotton (to prevent heat dissipation).


Use notes:


1, the heating workpiece must be a reliable grounding.


2, the use of the heater does not allow overlap.


3, the thermocouple should be reliable and the workpiece.


Note:


1, the width of the heater should be 8-12 times the wall thickness of the heated object.


2, according to the needs of the user can complete sets of supply wire cable, thermocouple, thermal insulation covering materials and special temperature control cabinet and capacitance welding apparatus.


3, power error is 3%, the form tolerance is 2%.


4, special specifications can be customized.
