Half bowl ceramic heater

Half a bowl shaped ceramic electric heater is according to the crawler ceramic electric heater developed a new type of electric heater, the work and the same parameters and crawler type ceramic electric heater, which can meet the repair pipeline engineering in power plant heat treatment and various special-shaped component welding heat treatment, such as a variety of pipe elbow, three links, and so on. The line diameter of the half bowl heater is 12mm, which can meet all kinds of pipe heat treatment of 45mm above 45mm, which can satisfy all kinds of pipeline heat treatment!


It is especially suitable for the application of half bowl shaped heater for the occasion where the pipe, pipe joint, and the space is narrow and difficult to work.


SCD type half bowl heater parameter table


Model


Fever size (m)


Operating voltage (V)


Rated power (kw)


Maximum temperature (c)


SCD-220


19


220


10


1050


SCD-110


9.5


110


5


1050


SCD-55


4.75


55


2.5


1050


There are three parts in the heat treatment equipment of the metal component, that is, the ceramic electric heater, the temperature control box and the auxiliary material.


1 ceramic electric heater: that is, heating element, is the heat source of the workpiece. My company offers you a variety of models and specifications, they have the characteristics, performance is not the same. Such as LCD type crawler heater, SCD half bowl type heaters, NJ heat frame type heater and so on, which normally takes users according to the heating of the workpiece shape, thickness and the required temperature values to choose.


2 temperature control box: it is with the ceramic electric heater, for the ceramic electric heater to provide power, and control its working state so as to achieve the purpose of temperature control. Temperature control box is equipped with temperature controller for controlling, measuring the temperature of the workpiece, and the configuration of the temperature recorder used to record the temperature curve of the workpiece in real time so that the user can record the record. At present our company for the user to provide various types and specifications of the temperature control box, such as Zwk, WCK, rwk with type series intelligent temperature program control box, DWK, TCS series computer temperature control box, LWK series temperature control box and so on, selection of user needs according to the range of heating, heating technology requirements and site requirements and to select the ideal and practical temperature control box.

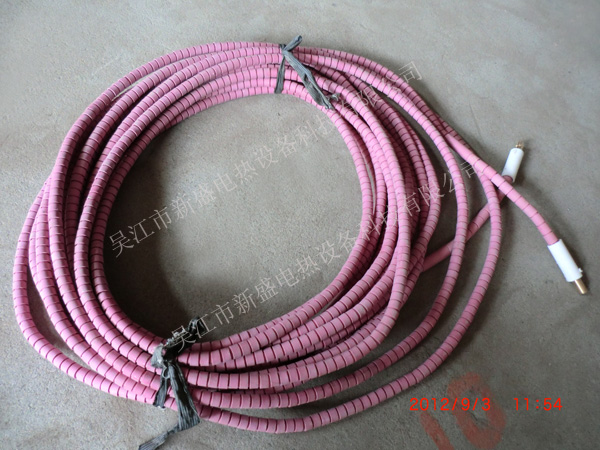

. auxiliary materials: mainly kJ type fast connecting with long wires (between the temperature control box and the heater distance connecting line to 36V, 55v, 110V, heater series, and is equipped with quick plug), thermocouple temperature sensor for measurement is the temperature of the heating workpiece), the compensation wire (between the thermocouple and the temperature control box connection line distance, aluminum silicate heat insulation cotton (to prevent heat dissipation).


Use notes:


1, the heating workpiece must be a reliable grounding.


2, the use of the heater does not allow overlap.


3, the thermocouple should be reliable and the workpiece.


Note:


1, the width of the heater should be 8-12 times the wall thickness of the heated object.


2, according to the needs of the user can complete sets of supply wire cable, thermocouple, thermal insulation covering materials and special temperature control cabinet and capacitance welding apparatus.


3, power error is 3%, the form tolerance is 2%.


4, special specifications can be customized.
