Temperature control by using the high and low temperature-regulating apparatus for controlled drying chamber high temperature/time/low temperature insulation set, and high and low temperature Auto-shift function, changing to a low temperature and then take out welding, very simple, setting drying temperature, holding two values at once, the drying time can be set. Corrosion-resistant stainless steel interior and shelves using materials and high quality steel plate with two choices, please indicate. Maximum working temperature of 500 degrees centigrade.

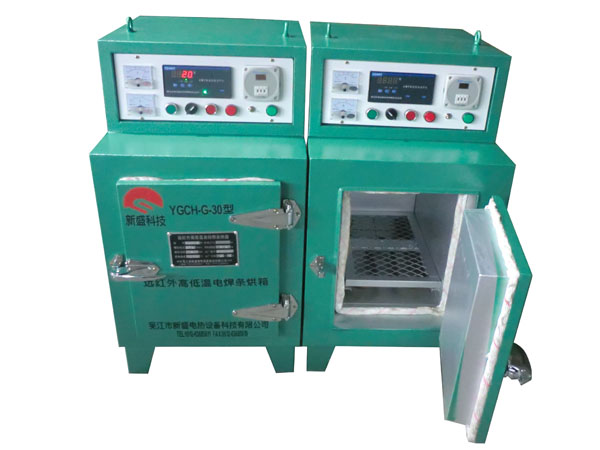

YGCH-G series infrared temperature control electrode drying oven parameters table
Model
Loading capacity (kg)
Power (kW)
Operating voltage (v)
YGCH-G-30
30
3.0
220
YGCH-G-60
60
3.5
220
YGCH-G-100
100
6.0
220
YGCH-G-150
150
7.5
380
YGCH-G-200
200
9.0
380
YGCH-G-400
400
15
380
YGCH-G-1000
1000
30
380
控溫采用高低溫二檔調節儀做程序控制，烘干室高溫烘干/保溫時間/低溫保溫一次設定，并實現高低溫自動轉變功能，轉變至低溫時即可取出施焊，非常簡單方便，一次設定烘干、保溫兩個溫度值，烘干時間可設定。In the gallbladder and the baggage shelf use the anti-corrosive stainless steel products to anticipate the high quality steel plate two kinds, time the choice please indicate.Highest operating temperature 500℃.
YGCH-G series far infrared high low temperature program control welding rod drying oven parameter list
Model
Loads capacity (kg)
Power (kw)
Working voltage (V)
YGCH-G-30
30
3.0
220
YGCH-G-60
60
3.5
220
YGCH-G-100
100
6.0
220
YGCH-G-150
150
7.5
380
YGCH-G-200
200
9.0
380
YGCH-G-400
400
15
380
YGCH-G-1000
1000
30
380
