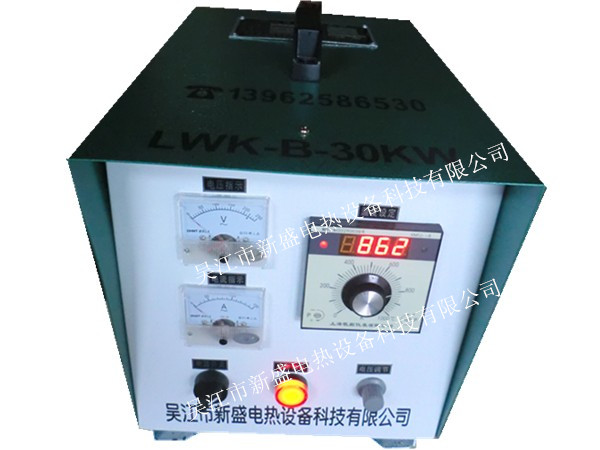

All kinds of electric heater in the preheating, hydrogen, heat treatment must be equipped with temperature control box to achieve temperature, constant temperature, cooling of a variety of changes. The LWK type temperature control box adopts the electronic regulator for controlling the temperature. The main circuit adopts the controllable silicon to trigger the duty ratio, the operation is simple, the temperature control is accurate. Automatic recording function. Output voltage 220V, (O-220V) adjustable voltage
Performance:
1 input voltage 380VAC
2 total output power 30KW/45A
3 output channels 3, each channel maximum output 10KW/45A
4 temperature control points 1, 1 temperature measurement points, independent temperature control independent set process curve
5 temperature control 0-1050
6 each channel is equipped with leakage protection switch, improve safety performance
7 panel with a working indicator to indicate the heater on the cut, convenient and intuitive
Characteristic:
1 temperature control instrument for electronic digital display instrument for temperature control device for convenient and simple
2 main circuit uses the controllable silicon output, no noise no pollution
3 over temperature, over temperature controlled silicon flexible
4 output voltage AC 0-220V can also output AC 220V adjustable voltage
Small volume 5 thyristor output, control equipment for the cabinet, the weight of 15KG
6 adapt to the power of large-scale installation, maintenance, preheating and hydrogen annealing treatment.
LWK type heat treatment temperature control box
Model
Rated output power
(kw)
Temperature control point
Record points
LWK-30-0101
30
1
1
LWK-60-0101
60
1
1
LWK-60-0306
60
3
6
LWK-90-0306
90
3
6
LWK-120-0612
120
612
LWK-180-0612
180
612
LWK-240-0612 240612
LWK-360-1212
360
1212
There are three parts in the heat treatment equipment of the metal component, that is, the ceramic electric heater, the temperature control box and the auxiliary material.
1 ceramic electric heater: that is, heating element, is the heat source of the workpiece. My company offers you a variety of models and specifications, they have the characteristics, performance is not the same. Such as LCD type crawler heater, SCD rope shaped heater, NJ heat frame type heater and so on, which normally takes users according to the heating of the workpiece shape, thickness and the required temperature values to choose.
2 temperature control box: it is with the ceramic electric heater, for the ceramic electric heater to provide power, and control its working state so as to achieve the purpose of temperature control. Temperature control box is equipped with temperature controller for controlling, measuring the temperature of the workpiece, and the configuration of the temperature recorder used to record the temperature curve of the workpiece in real time so that the user can record the record. At present our company for the user to provide various types and specifications of the temperature control box, such as Zwk, WCK, rwk with type series intelligent temperature program control box, DWK, TCS series computer temperature control box, LWK series temperature control box and so on, selection of user needs according to the range of heating, heating technology requirements and site requirements and to select the ideal and practical temperature control box.
. auxiliary materials: mainly kJ type fast connecting with long wires (between the temperature control box and the heater distance connecting line to 36V, 55v, 110V, heater series, and is equipped with quick plug), thermocouple temperature sensor for measurement is the temperature of the heating workpiece), the compensation wire (between the thermocouple and the temperature control box connection line distance, aluminum silicate heat insulation cotton (to prevent heat dissipation).
Use notes:
1, the heating workpiece must be a reliable grounding.
2, the use of the heater does not allow overlap.
3, the thermocouple should be reliable and the workpiece.
Note:
1, the width of the heater should be 8-12 times the wall thickness of the heated object.
2, according to the needs of the user can complete sets of supply wire cable, thermocouple, thermal insulation covering materials and special temperature control cabinet and capacitance welding apparatus.
3, power error is 3%, the form tolerance is 2%.
4, special specifications can be customized.
|
